TC HOSE

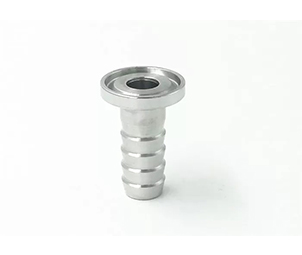

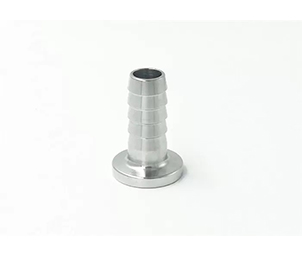

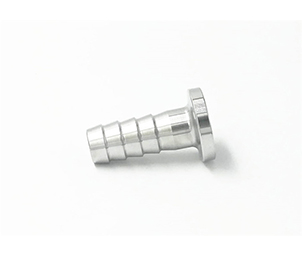

| Item Name | Sanitary Stainless Steel Tri-Clamp x Hose Barb Adapter |
| Standards | 3A / SMS / DIN / RJT / IDF |
| Sizes | 1/2" - 6" DN15 - DN150 |
| Material | SS304 / SS316L |
| Seal | Silicone / EPDM / Viton / NBR / PTFE |
| Connection Type(s) | Weld End / Clamp End / Thread End |
| Operation Type(s) | × |
| Handles | × |
| Surface Finishing | Ra ≤ 0.8μm |
| Working Temperature | -10°C to 102°C ( EPDM ) |
| Pressure Rating | 0.2 - 10 Bar ( DN25 - DN100 ) 0.2 - 8 Bar ( DN125 - DN150 ) |
| Application Scopes | Dairy / Food / Beverage / Pharmacy / Cosmetic / Chemical |
| Marking | Laser Marking |

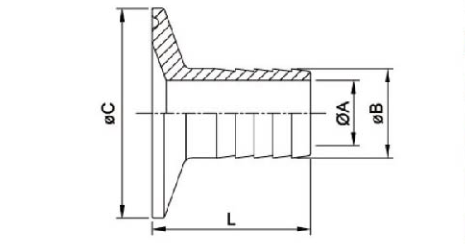

| 3A 14MPHR Rubber Hose Adapter | |||||||||||
| Size | A | B | C | L | |||||||
| 1/2" | 9.5 | 13.7 | 25.2 | 38.1 | |||||||
| 3/4" | 15.8 | 31.4 | 25.2 | 38.1 | |||||||
| 1" | 20.6 | 25.4 | 50.5 | 43 | |||||||
| 1.5" | 33.2 | 38.1 | 50.5 | 43 | |||||||
| 2" | 46 | 50.8 | 64 | 58.7 | |||||||
| 2.5" | 58.7 | 63.5 | 77.5 | 59.5 | |||||||
| 3" | 72 | 76.2 | 91 | 78.5 | |||||||
| 4" | 97.6 | 101.6 | 119 | 86.6 | |||||||
